    SS410 Hex Head Self Drilling Metal Screws

    Ask Lasest Price
    Brand Name : BOZEX, Customized
    Model Number : BZX.S080502-M6.3-125
    Certification : ISO9001 DIN
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50Million pcs per day
    Delivery Time : 5-8working days
    • Product Details
    • Company Profile

    SS410 Hex Head Self Drilling Metal Screws

    410 Stainless Steel Hex Head Drilling Self Tapping Screws

    Quick Details:
    Other Name:410 Stainless Steel Hex Head Drilling Self Tapping Screws
    Original Product Material: 410 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, Alloy Steel
    Screw Size: M2, M2.6, M3, M4 Certificate: DIN, ISO, GB
    Application: Industrial machinery, Furniture, House etc.

    Products Description

    1. 410 Stainless Steel Self Tapping Screws of Hex Head Drilling, do not require a hole to be drilled prior to use which cuts down on time needed to drill and fasten materials by combining them. These have the same heads as traditional bolts and screws, but the fastener is designed with a drill flute on the tip to drill/fasten at the same time. Useful for quick sheet metal fastening and other applications like metal to metal or wood to metal.


    2. 410 Stainless Steel Self Tapping Screws of Hex Head Drilling. Pan heads are slightly rounded with short vertical sides. Phillips drives are + shaped for a phillips screw driver.



    3. 410 Stainless Steel Self Tapping Screws of Hex Head Drilling is also called drilling screw, drilling screw, self-drilling screw and northerners are also known as "dovetail screw". English: SELF DRILLING SCREWS. Its implementation standards include the national standard GB/T 15856.1-2002, the German standard DIN7504N-1995, and the Japanese standard JIS B 1124-2003.

    4. This kind of screw has a drilled tail tip, and the tip is like a twist drill. The screw can drill the center hole by itself during assembly, and then taps and squeezes out the matching thread in the hole on the carrier with the help of the adjacent threaded part. Thread, so it is called self-drilling and self-tapping screw.

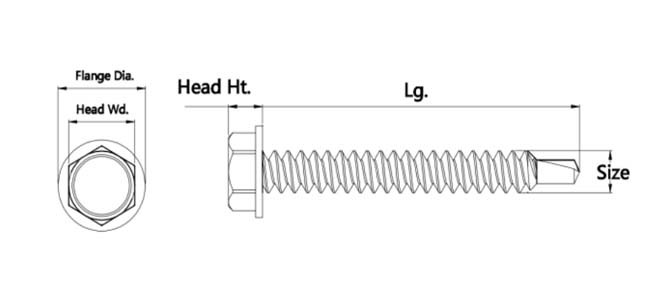

    ​ 410 Stainless Steel Hex Head Drilling Self Tapping Screws Parameters and Drawing

    SizeCodeFlange Dia.Head Wd.Head Ht.Lg.
    M4.2 x 13BZX.S080502-M4.2-138.256.253.113
    M4.2 x 16BZX.S080502-M4.2-168.256.253.116
    M4.2 x 19BZX.S080502-M4.2-198.256.253.119
    M4.2 x 25BZX.S080502-M4.2-258.256.253.125
    M4.2 x 32BZX.S080502-M4.2-328.256.253.132
    M4.2 x 38BZX.S080502-M4.2-388.256.253.138
    M4.2 x 45BZX.S080502-M4.2-458.256.253.145
    M4.2 x 50BZX.S080502-M4.2-508.256.253.150
    M4.8 x 13BZX.S080502-M4.8-139.87.8413
    M4.8 x 16BZX.S080502-M4.8-169.87.8416
    M4.8 x 19BZX.S080502-M4.8-199.87.8419
    M4.8 x 25BZX.S080502-M4.8-259.87.8425
    M4.8 x 32BZX.S080502-M4.8-329.87.8432
    M4.8 x 38BZX.S080502-M4.8-389.87.8438
    M4.8 x 45BZX.S080502-M4.8-459.87.8445
    M4.8 x 50BZX.S080502-M4.8-509.87.8450
    M4.8 x 55BZX.S080502-M4.8-559.87.8455
    M4.8 x 63BZX.S080502-M4.8-639.87.8463
    M6.3 x 19BZX.S080502-M6.3-1911.399.395.4419
    M6.3 x 25BZX.S080502-M6.3-2511.399.395.4425
    M6.3 x 32BZX.S080502-M6.3-3211.399.395.4432
    M6.3 x 38BZX.S080502-M6.3-3811.399.395.4438
    M6.3 x 45BZX.S080502-M6.3-4511.399.395.4445
    M6.3 x 50BZX.S080502-M6.3-5011.399.395.4450
    M6.3 x 63BZX.S080502-M6.3-6311.399.395.4463
    M6.3 x 75BZX.S080502-M6.3-7511.399.395.4475
    M6.3 x 80BZX.S080502-M6.3-8011.399.395.4480
    M6.3 x 90BZX.S080502-M6.3-9011.399.395.4490
    M6.3 x 100BZX.S080502-M6.3-10011.399.395.44100
    M6.3 x 125BZX.S080502-M6.3-12511.399.395.44125



    Advantages
    1. Our company have more than 15 years experience in the Stainless Steel Screws field.
    2. We have Professional experienced engineers, sales and overseas engineers.
    3. We have professional quality Checking department, make sure good quality.
    4. 24Hrs online service.
    5. Active and perfect after-sales service system.
